Home Products > Gearboxes > Worm & Wheel gearboxes > GW12

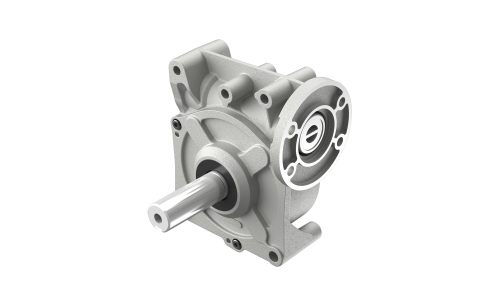

GW12-C-12.5-B

Gears material Bronze | Size 73 mm | Reduction Ratio 12.5 | Nominal Output Torque 30 Nm | Max. Output Torque 48 Nm | Efficiency 80 %

Product Code: GW12-C-12.5-B

Technical Data

Download

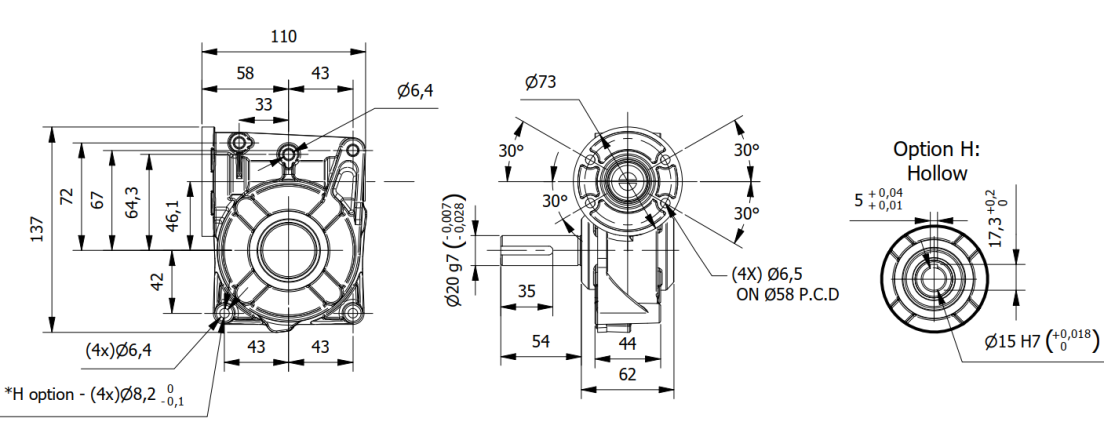

Dimensions

Gears material	Bronze	Size	73 mm
Length (L)	62 mm	Stages	1
Reduction Ratio	12.5	Nominal Output Torque	30 Nm
Max. Output Torque	48 Nm	Efficiency	80 %
Backlash	10-25 arc.min	Max. Axial load	600 N
Max. Radial Load (12mm from flange)	800	Weight	1.5 Kg
