Home Products > Gearboxes > Worm & Wheel gearboxes > GW58

GW58-O-10-C

Gears material Composite | Size 53 mm | Reduction Ratio 10 | Nominal Output Torque 4 Nm | Max. Output Torque 8 Nm | Efficiency 80 %

Product Code: GW58-O-10-C

Technical Data

Download

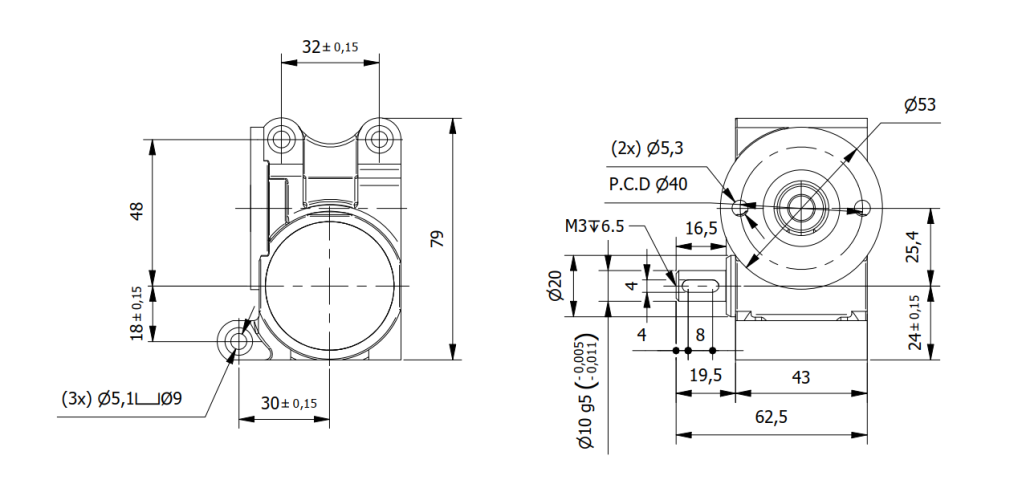

Dimensions

Gears material	Composite	Size	53 mm
Length (L)	43 mm	Stages	1
Reduction Ratio	10	Nominal Output Torque	4 Nm
Max. Output Torque	8 Nm	Efficiency	80 %
Backlash	10-25 arc.min	Max. Axial load	300 N
Max. Radial Load (12mm from flange)	400	Weight	0.4 Kg
