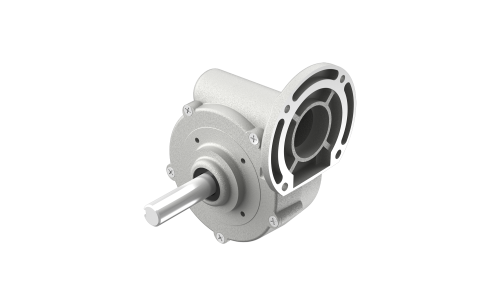

GWL-O-30-B

Gears material Bronze | Size 88 mm | Reduction Ratio 30 | Nominal Output Torque 19 Nm | Max. Output Torque 22 Nm | Efficiency 65 %

Product Code: GWL-O-30-B

Technical Data

Download

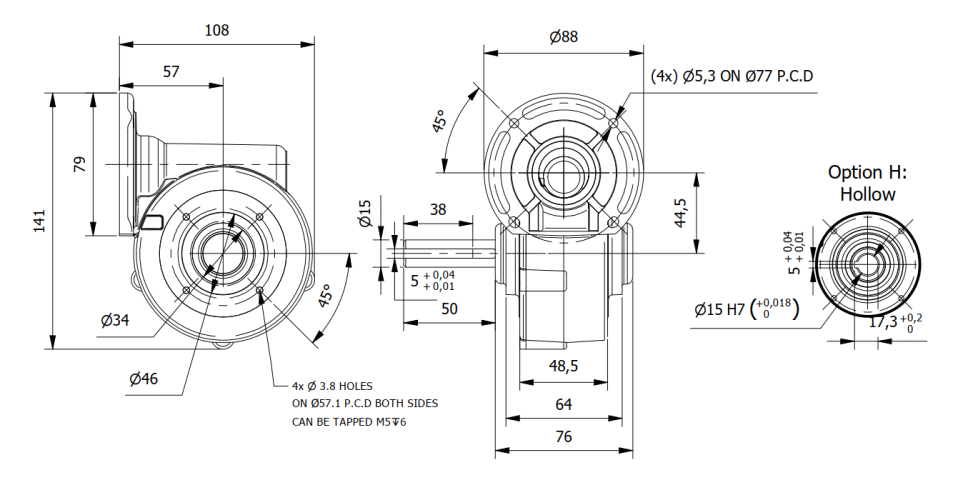

Dimensions

Gears material	Bronze	Size	88 mm
Length (L)	76 mm	Stages	1
Reduction Ratio	30	Nominal Output Torque	19 Nm
Max. Output Torque	22 Nm	Efficiency	65 %
Backlash	10-25 arc.min	Max. Axial load	196 N
Max. Radial Load (12mm from flange)	314	Weight	1.9 Kg
