GWS-O-30-C GWS | Fulling

Home   Products   >   Gearboxes   >   Worm & Wheel gearboxes   >   GWS
GWS-O-30-C

GWS-O-30-C

Gears material Composite   |  Size 51 mm  |  Reduction Ratio 30   |  Nominal Output Torque 3 Nm  |  Max. Output Torque 4.8 Nm  |  Efficiency 65 %

Product Code: GWS-O-30-C

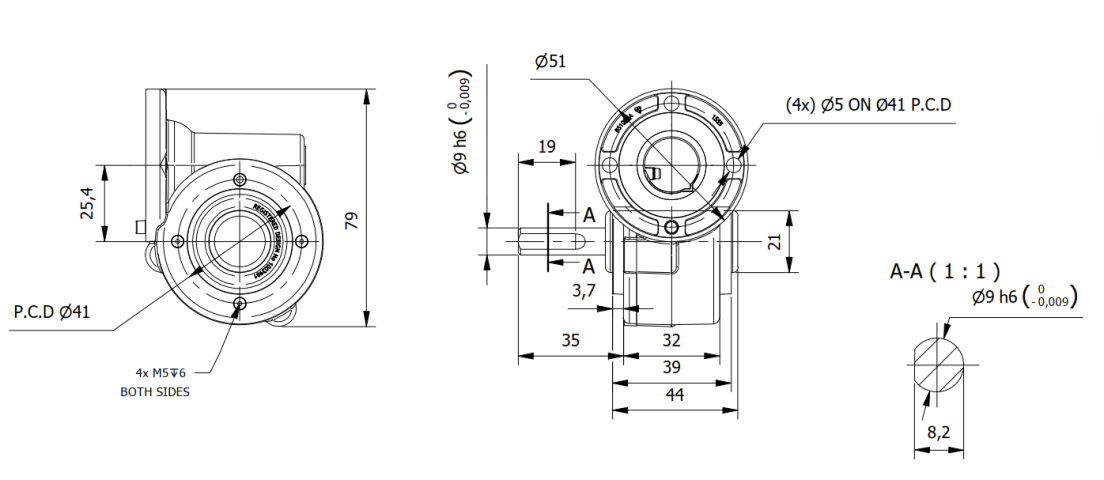

Technical Data Download Dimensions
Gears materialComposite Size51 mm
Length (L)44 mmStages1
Reduction Ratio30 Nominal Output Torque3 Nm
Max. Output Torque4.8 NmEfficiency65 %
Backlash10-25 arc.minMax. Axial load150 N
Max. Radial Load (12mm from flange)250 Weight0.3 Kg
