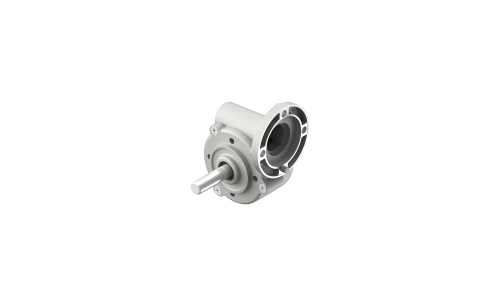

GWS-O-70-B

Gears material Bronze | Size 51 mm | Reduction Ratio 70 | Nominal Output Torque 3 Nm | Max. Output Torque 4.8 Nm | Efficiency 35 %

Product Code: GWS-O-70-B

Technical Data

Download

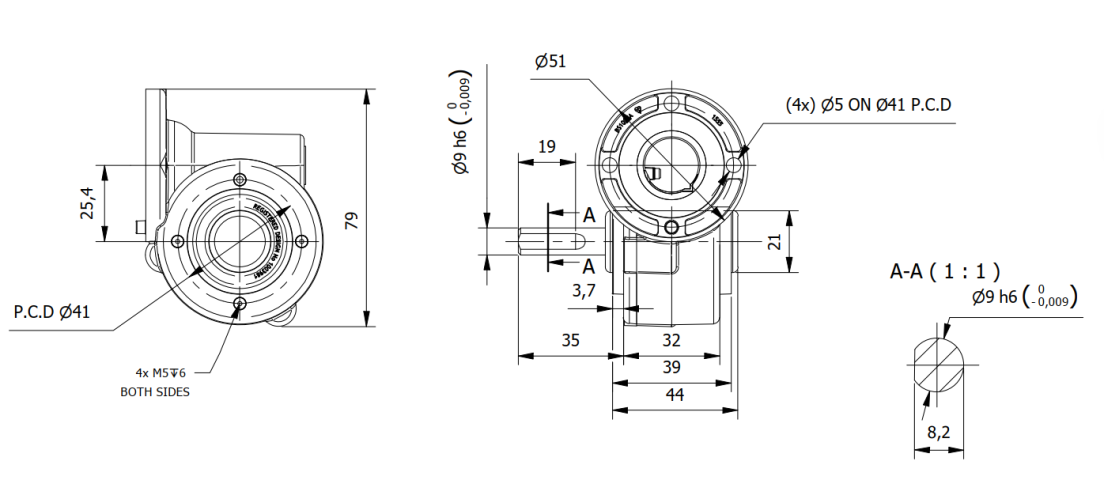

Dimensions

Gears material	Bronze	Size	51 mm
Length (L)	44 mm	Stages	1
Reduction Ratio	70	Nominal Output Torque	3 Nm
Max. Output Torque	4.8 Nm	Efficiency	35 %
Backlash	10-25 arc.min	Max. Axial load	150 N
Max. Radial Load (12mm from flange)	250	Weight	0.4 Kg
