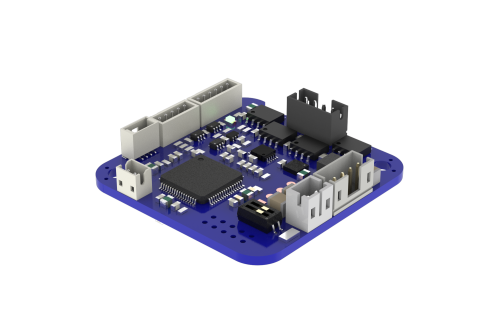

HERCULES - SOD202 C001-S200

HERCULES - SOD202 C001-S200

Interface CANopen - programmable   |  Power Supply 12 - 36 VDC   |  Phase Current up to 2 A rms  |  Peak Current 2 A peak  |  Open / Closed Loop Closed Loop

Product Code: SOD202_C001-S200

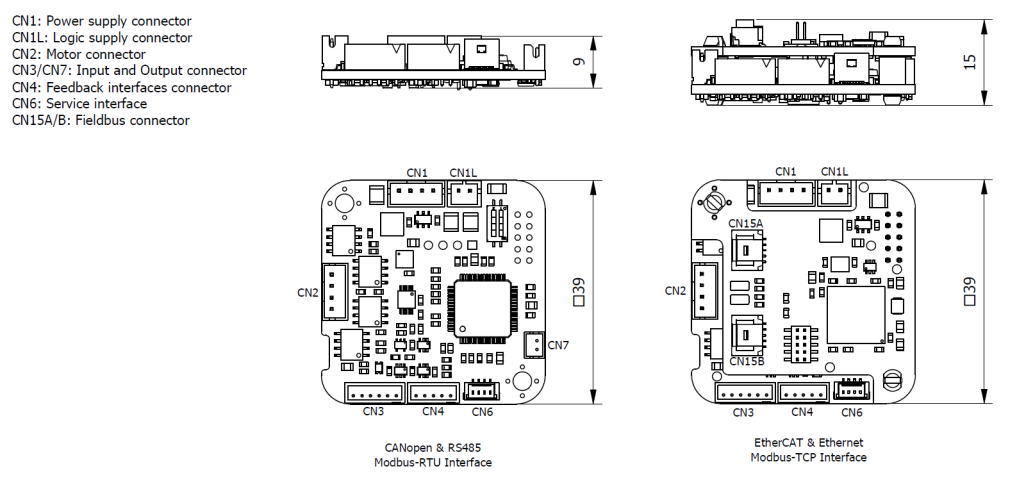

Technical Data Download Dimensions Software Accessories
InterfaceCANopen - programmable Power Supply12 - 36 VDC
Phase Current up to2 A rmsPeak Current2 A peak
Open / Closed LoopClosed Loop Logic Power Supply12 - 36 VDC
Chopper frequency40 kHzWeight15 g
Operating modeStep resolution: Stepless Control Technology (65536 emulated positions per turn) Protective functionsOver current, Over/Under Voltage, Overheating, Supply inversion
Protection ClassIP00 Pollution degree2
Operating Temperature+5 / +40°C Humidity5 - 85%
Digital Inputs3 Digital Outputs2
Analog Inputs1 Encoder (standard)Incremental encoder (not isolated): 5V Single-Ended (TTL/CMOS)
