Home Products > Motors with integrated Controller > Brushless DC motors with Motion controller > IBS042

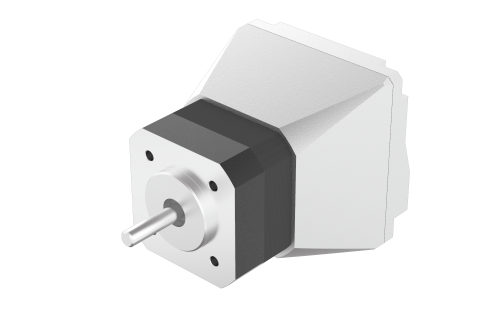

IBS042 0050NE1000 C-S402

Size 42 mm | Length (L) 95 mm | Interface CANopen | Rated Torque 0.125 Nm | Rated Power 50 Watt | Operating Voltage 24-36 Vdc

Product Code: IBS0420050NE1000C-S402

Technical Data

Download

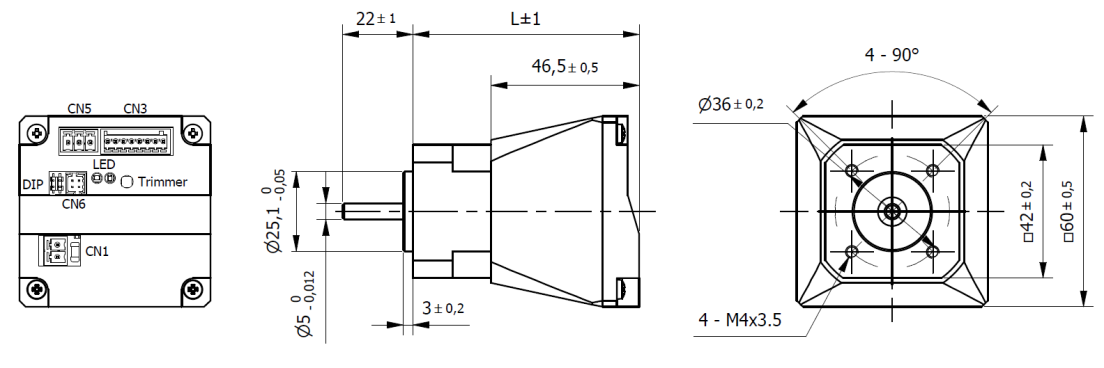

Dimensions

Software

Accessories

Size	42 mm	Length (L)	95 mm
Interface	CANopen	Rated Torque	0.125 Nm
Rated Power	50 Watt	Rated Current	3.5 A
Operating Voltage	24-36 Vdc	n° of Pole	8
Rated Voltage	24 Vdc	Rated Speed	4000 rpm
Max. Peak Torque	0.38 Nm	Torque Constant	0.036 Nm/A
Max. Peak Current	10.7 A	No-Load Current	<500 mA
Rotor Inertia	48 gcm²	Weight	0.65 Kg
Shaft run out	0.025 mm	Insulation Class	B
Protection Class	IP20	Operating Temperature	+5°C to +40°C
Humidity	5% to 85% not condensing	Radial Play (450g load)	0.02 mm
Axial Play (450g load)	0.08 mm	Max. Radial Force (10mm from flange)	28 N
Max. Axial Force	10 N	Dielectric Strength (for 1min.)	500 VAC
Insulation Resistance (min.500 VDC)	100 Mohm	Operating mode	Speed, Torque
Encoder Type - Standard	Magnetic Incremental encoder	Protective functions	Over current, over/under voltage, overheating, short circuit
Debug & configuration	Serial Interface	Digital Inputs	3 not isolated 5-24 Vdc NPN or Push Pull
Analog Inputs	1 with potentiometer or 0-10 Vdc	Digital Outputs	2 not isolated, open drain, 5 - 24 Vdc 100 mA
