Home Products > Motors with integrated Controller > Stepper motors with Motion controller > ISI060 -IP65 with D-Code connector

ISI060 0091NE2000 P-S200

Size 60 mm | Length (L) 91 mm | Interface Profinet | Holding Torque 1.75 Nm | Current/Phase 3 A | Operating Voltage 12-48 Vdc

Product Code: ISI0600091NE2000P-S200

Technical Data

Download

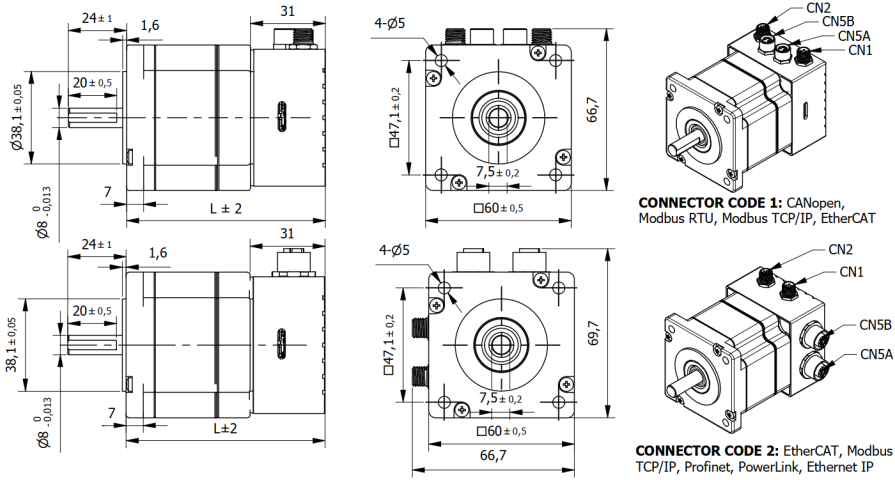

Dimensions

Software

Accessories

Size	60 mm	Length (L)	91 mm
Interface	Profinet	Holding Torque	1.75 Nm
Current/Phase	3 A	Operating Voltage	12-48 Vdc
Resistance/Phase	0.8 Ohm	Inductance/Phase	3 mH
Rotor Inertia	440 gcm²	Detent Torque	0.069 Nm
Weight	0.95 Kg	Step Angle	1.8 °
Step Angle accuracy	±5 %	Protection Class	IP65
Operating Temperature	+5°C +40°C	Humidity	5% to 85% not condensing
Max. Temp. Rise (rated current, 2-phase on)	80 °C	Radial Play (450g load)	0.02 mm
Axial Play (450g load)	0.08 mm	Max. Radial Force (20mm from flange)	75 N
Max. Axial Force	15 N	Dielectric Strength (for 1min.)	500 VAC
Insulation Resistance (min.500 VDC)	100 Mohm	Operating mode	Position, Speed, Torque
Encoder Type - Standard	Magnetic Incremental 4096 CPR or Absolute Single turn encoder	Protective functions	Over current, over/under voltage, overheating, short circuit
Debug & configuration	Serial Interface (not for M-C)	Digital Inputs	4 not isolated 5-24 Vdc PNP
Analog Inputs	1 with potentiometer or 0-10 Vdc	Digital Outputs	2 not isolated open drain, 5-24 Vdc 100 mA

Need help?
Talk to our experts

Contact us

Europe

Delta Line SA
Via Prè d’là, 1
CH-6814 Lamone, Switzerland
Phone: +41 (0)91 612 85 00
Fax: +41 (0)91 612 85 19
E-mail: info@fullingmotor.eu

China

Changzhou Fulling Motor Co.
Company Limited,
No. 69 Kunlun Road,
Xinbei District
Changzhou City, Jiangsu

Privacy & cookie Policy

Sitemap

		DL Space DL Space is the innovative visual programming environment for our drivers. This software does not require the learning of a text language but, through a graphic programming and guided windows, it allows the creation of multitasking programs exploiting all the functionalities of the DL drives with S200 firmware. The programs realized with DL Space allow to exploit all the low-level control modes of our programmable drives for both brushless and stepper motors, including multiple homing modes, the electric shaft, the electronic range and many other functions. Application debugging can be carried out quickly and easily thanks to the dedicated windows that include a virtual oscilloscope to monitor the actual motor movements.
		Software Manual
