Home Products > Motors with integrated Controller > Stepper motors with Motion controller > ISS057

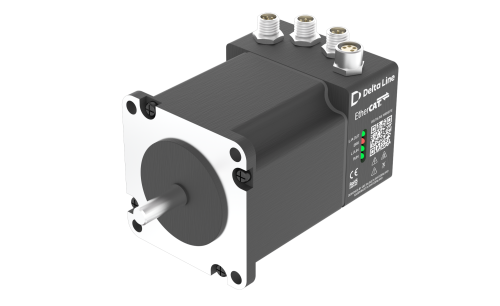

ISS057 0071NE100X C-S402

Size 57 mm | Length (L) 71 mm | Interface CANopen | Holding Torque 0.55 Nm | Current/Phase 3 A | Operating Voltage 12-48 Vdc

Product Code: ISS0570071NE100XC-S402

Technical Data

Download

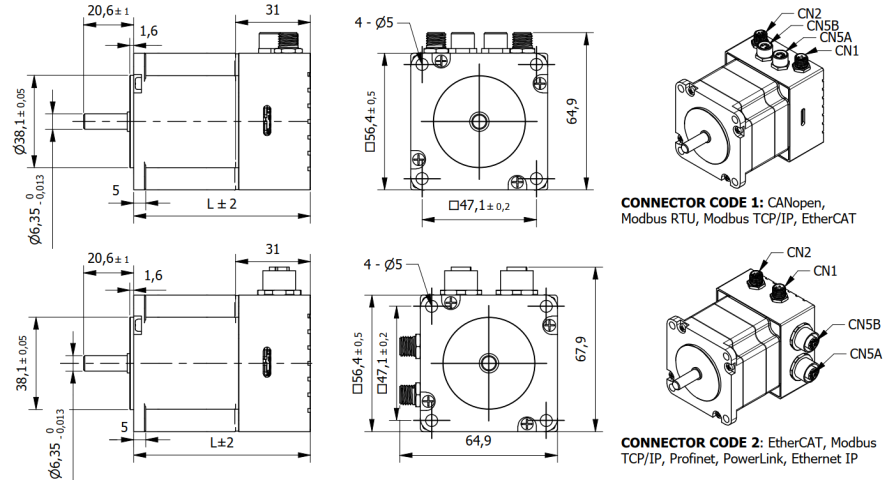

Dimensions

Software

Accessories

Size	57 mm	Length (L)	71 mm
Interface	CANopen	Holding Torque	0.55 Nm
Current/Phase	3 A	Operating Voltage	12-48 Vdc
Resistance/Phase	0.7 Ohm	Inductance/Phase	1.4 mH
Rotor Inertia	120 gcm²	Detent Torque	0.021 Nm
Weight	0.54 Kg	Step Angle	1.8 °
Step Angle accuracy	±5 %	Protection Class	IP30
Operating Temperature	+5°C +40°C	Humidity	5% to 85% not condensing
Max. Temp. Rise (rated current, 2-phase on)	80 °C	Radial Play (450g load)	0.02 mm
Axial Play (450g load)	0.08 mm	Max. Radial Force (20mm from flange)	75 N
Max. Axial Force	15 N	Dielectric Strength (for 1min.)	500 VAC
Insulation Resistance (min.500 VDC)	100 Mohm	Operating mode	Position, Speed, Torque
Encoder Type - Standard	Magnetic Incremental 4096 CPR or Absolute Single turn encoder	Protective functions	Over current, over/under voltage, overheating, short circuit
Debug & configuration	Serial Interface (not for M-C)	Digital Inputs	4 not isolated 5-24 Vdc PNP
Analog Inputs	1 with potentiometer or 0-10 Vdc	Digital Outputs	2 not isolated open drain, 5-24 Vdc 100 mA

Need help?
Talk to our experts

Contact us

Europe

Delta Line SA
Via Prè d’là, 1
CH-6814 Lamone, Switzerland
Phone: +41 (0)91 612 85 00
Fax: +41 (0)91 612 85 19
E-mail: info@fullingmotor.eu

China

Changzhou Fulling Motor Co.
Company Limited,
No. 69 Kunlun Road,
Xinbei District
Changzhou City, Jiangsu

Privacy & cookie Policy

Sitemap

		DL Studio DL Studio is a PC Window program that allows the configuration and debugging of all stepper and brushless motor and drives. Easy and intuitive, DL Studio allows users to configure of all the main operating parameters through guided procedures, real-time monitoring of all the operating parameters and allowing access to the alarm history memory. With DL Studio it is possible to create configuration profiles and save them to your PC to be downloaded in each new drive depending on the needs of the application. In addition, it also allows you to update the firmware version of our drives.
		Software Manual
