LEO - B3800O240 R001-S402

LEO - B3800O240 R001-S402

Interface PowerLink   |  Power Supply 12 - 60 VDC   |  Phase Current up to 80 A rms  |  Peak Current 240 (for 2s.) A peak  |  Motor Power up to 3800 W

Product Code: B3800O240R001-S402

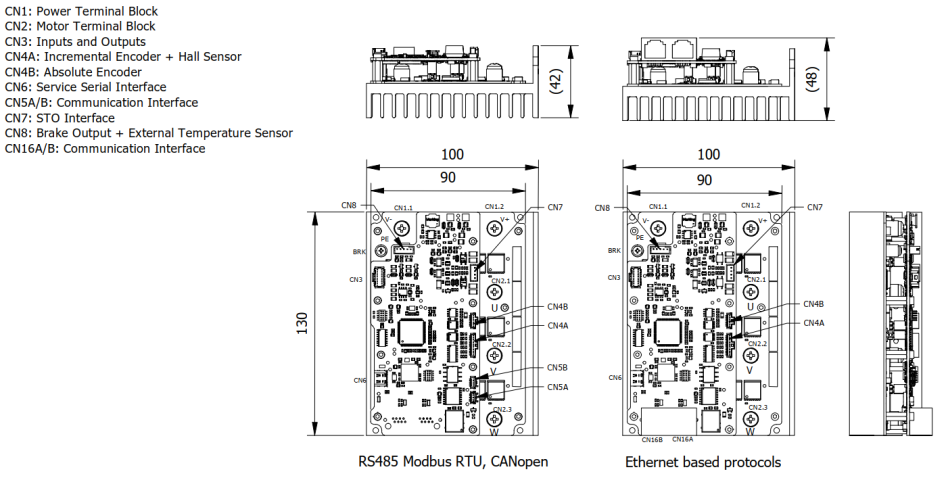

Technical Data Download Dimensions Software Accessories
InterfacePowerLink Power Supply12 - 60 VDC
Phase Current up to80 A rmsPeak Current240 (for 2s.) A peak
Motor Power up to3800 WLogic Power Supply12 - 60 VDC (optional)
Chopper frequency40 kHzWeight540 g
Open / Closed LoopClosed Loop Operating modeProfile position/velocity/homing mode, Cyclic sync position/velocity/torque mode
Protective functionsOver current, over/under voltage, overheating, short circuit Protection ClassIP00
Safety featureSafe Torque Off (STO) SIL3/Ple Pollution degree2
Operating Temperature+5 / +40°C Humidity5 - 85%
Digital Inputs4 Digital Outputs3
Analog Inputs2 Encoder (standard)Incremental encoder (not isolated): 5V Differential (RS422) or 5V Single-Ended (TTL/CMOS) or Absolute encoder BiSS
Hall effect sensors5V Single-Ended (TTL/CMOS)
