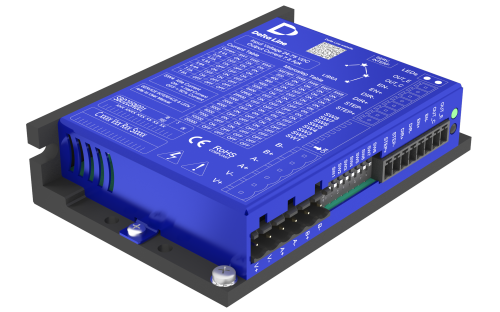

LIBRA - SBD205 N001-S100

Product Code: SBD205N001-S100

Technical Data

Download

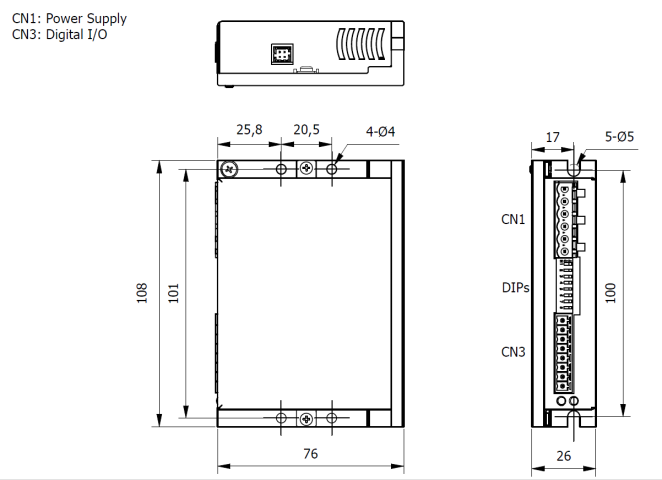

Dimensions

Accessories

Interface	Clock & Direction	Power Supply	24 - 80 VDC
Phase Current up to	5.5 A rms	Peak Current	7.8 A peak
Open / Closed Loop	Open Loop	Chopper frequency	40 kHz
Weight	200 g	Operating mode	From Fullstep to 1/100 step (config. with dip switches)
Protective functions	Over current, Over/Under Voltage, Overheating, Short circuit	Protection Class	IP20
Pollution degree	2	Operating Temperature	+5 / +40°C
Humidity	5 - 85%	Digital Inputs	3 opto-coupled
Digital Outputs	1 opto-coupled
