Home Products > Motor Controllers/Drives > Brushless DC motor Controllers / Drives > Pegasus B072

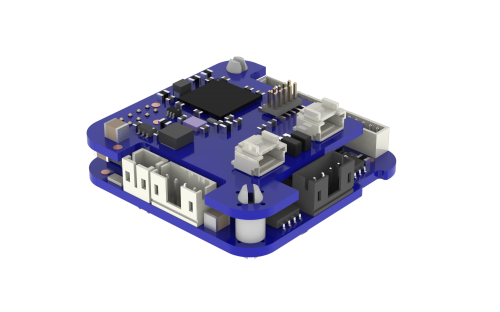

PEGASUS - B072O06 T001-S200

Product Code: B072O06_T001-S200

Technical Data

Download

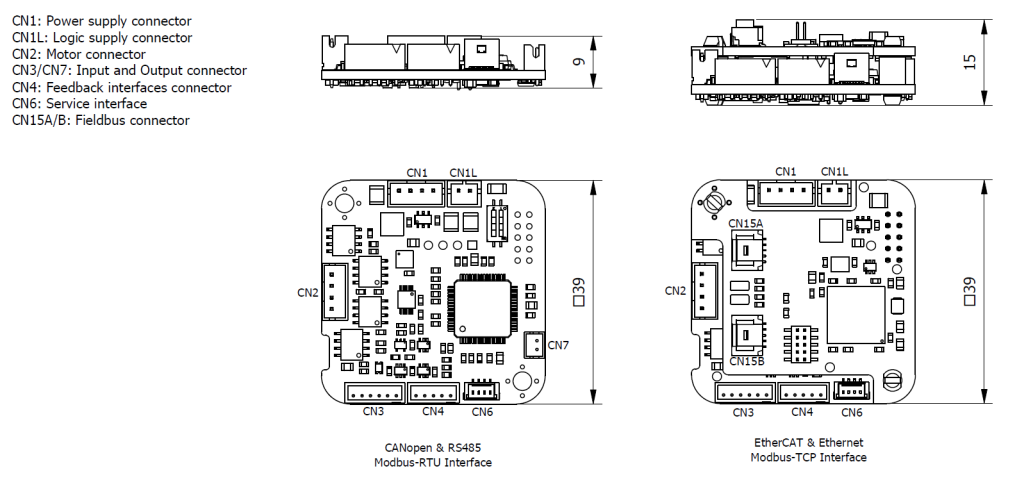

Dimensions

Software

Accessories

Interface	Modbus TCP	Power Supply	12 - 36 VDC
Phase Current up to	2 A rms	Peak Current	2 A peak
Motor Power up to	72 W	Logic Power Supply	12 - 36 VDC
Chopper frequency	40 kHz	Weight	15 g
Open / Closed Loop	Closed Loop	Operating mode	Profile position/velocity/homing mode, Cyclic sync position/velocity/torque mode
Protective functions	Over current, Over/Under Voltage, Overheating, Supply inversion	Protection Class	IP00
Pollution degree	2	Operating Temperature	+5 / +40°C
Humidity	5 - 85%	Digital Inputs	3
Digital Outputs	2	Encoder (standard)	Incremental encoder (not isolated): 5V Differential (RS422) or 5V Single-Ended (TTL/CMOS)
Hall effect sensors	5V Single-Ended (TTL/CMOS)
