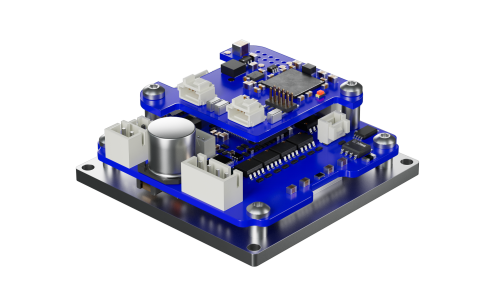

PEGASUS - B144O03 R001-S402

Product Code: B144O03_R001-S402

Technical Data

Download

Dimensions

Software

Accessories

Interface	PowerLink	Power Supply	12 - 48 VDC
Phase Current up to	3 A rms	Peak Current	3 A peak
Motor Power up to	144 W	Logic Power Supply	12 - 48 VDC (optional)
Chopper frequency	40 kHz	Weight	27 g
Open / Closed Loop	Closed Loop	Operating mode	Profile positio/velocity/homing mode, Cyclic sync position/velocity/torque mode
Protective functions	Over current, Over/Under Voltage, Overheating, Supply inversion	Protection Class	IP00
Pollution degree	2	Operating Temperature	+5 / +40°C
Humidity	5 - 85%	Digital Inputs	4
Digital Outputs	3	Analog Inputs	1
Encoder (standard)	Incremental encoder (not isolated): 5V Differential (RS422) or 5V Single-Ended (TTL/CMOS)	Encoder (optional)	Absolute Encoder Biss-C
Hall effect sensors	5V Single-Ended (TTL/CMOS)

Need help?
Talk to our experts

Contact us

Europe

Delta Line SA
Via Prè d’là, 1
CH-6814 Lamone, Switzerland
Phone: +41 (0)91 612 85 00
Fax: +41 (0)91 612 85 19
E-mail: info@fullingmotor.eu

China

Changzhou Fulling Motor Co.
Company Limited,
No. 69 Kunlun Road,
Xinbei District
Changzhou City, Jiangsu

Privacy & cookie Policy

Sitemap

		DL Studio DL Studio is a PC Window program that allows the configuration and debugging of all stepper and brushless motor and drives. Easy and intuitive, DL Studio allows users to configure of all the main operating parameters through guided procedures, real-time monitoring of all the operating parameters and allowing access to the alarm history memory. With DL Studio it is possible to create configuration profiles and save them to your PC to be downloaded in each new drive depending on the needs of the application. In addition, it also allows you to update the firmware version of our drives.
		Software Manual
