45BLW16 Flat Cable 45BLW - flat cable | Fulling

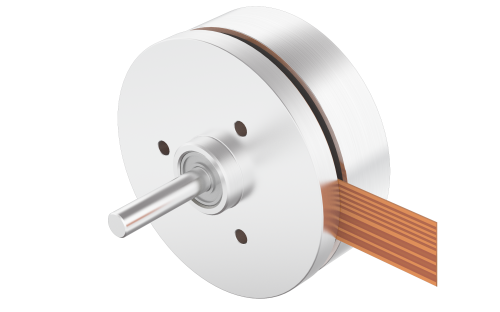

45BLW16 Flat Cable

45BLW16 Flat Cable

Size 45 mm  |  Length (L) 16 mm  |  Rated Voltage 12 Vdc  |  Rated Torque 0.055 Nm  |  Rated Speed 2910 rpm

Product Code: 45BLW16.000
Buy online:
RS logo

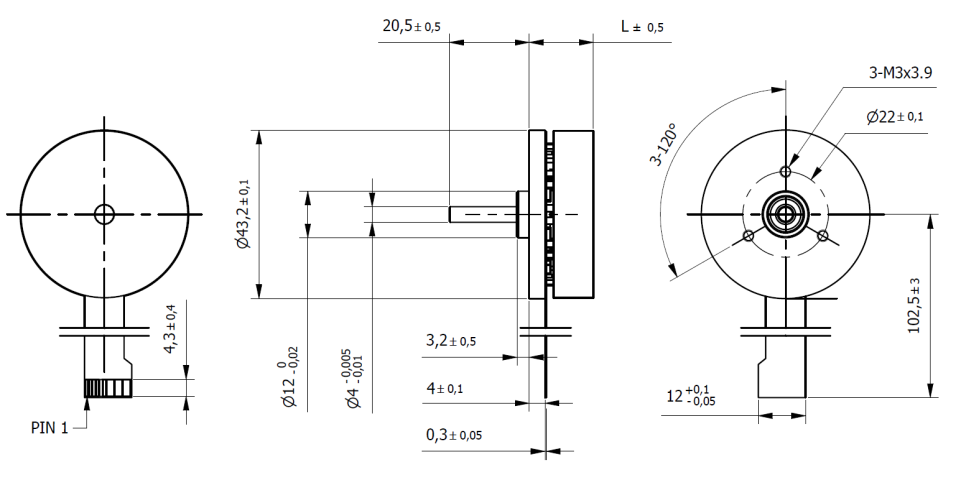

Technical Data Download Dimensions
Size45 mmLength (L)16 mm
Rated Voltage12 VdcRated Torque0.055 Nm
Rated Speed2910 rpmn° of Pole16
n° of Phase3 Max. Peak Torque0.16 Nm
Torque Constant0.026 Nm/ARated Current2.12 A
Max. Peak Current6.3 ANo-Load Current320 mA
Line to Line Resistance0.9 OhmLine to Line Inductance0.34 mH
Rotor Inertia92.5 gcm2Weight0.08 Kg
Hall Effect Angle120 °Shaft run out0.03 mm
Insulation ClassB Protection ClassIP40
Radial Play (450g load)0.02 mmAxial Play (450g load)0.14 mm
Max. Radial Force (10mm from flange)28 NMax. Axial Force10 N
Dielectric Strength (for 1min.)500 VACInsulation Resistance (min.500 VDC)100 Mohm
