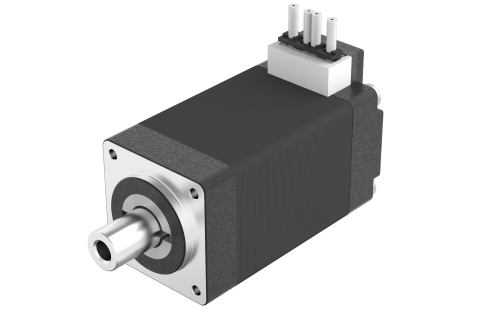

20STC40-0604AC-H

Size 20 mm | Nema 08 | Length (L) 40 mm | Current/Phase 0.6 A | Holding Torque 0.036 Nm | Step Angle 1.8 °

Product Code: 20STC40-0604AC-H.000

Technical Data

Download

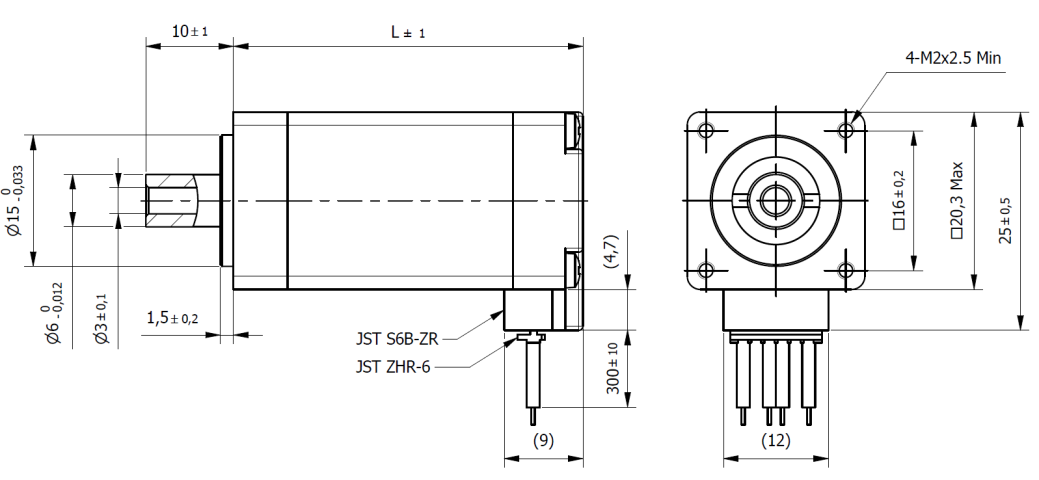

Dimensions

Size	20 mm	Nema	08
Length (L)	40 mm	Current/Phase	0.6 A
Holding Torque	0.036 Nm	Step Angle	1.8 °
Rated Voltage	4.3 Vdc	Resistance/Phase	7.2 Ohm
Inductance/Phase	3.15 mH	Rotor Inertia	2.9 gcm²
Detent Torque	0,002 Nm	N° of Leads	4
Weight	0.08 Kg	Step Angle accuracy	±5 %
Insulation Class	B	Protection Class	IP30
Operating Temperature	-20°C +50°C	Max. Temp. Rise (rated current, 2-phase on)	80 °C
Radial Play (450g load)	0,02 mm	Axial Play (450g load)	0,08 mm
Max. Radial Force (5mm from flange)	10 N	Max. Axial Force	4 N
Dielectric Strength (for 1min.)	500 VAC	Insulation Resistance (min.500 VDC)	100 Mohm
