PHOENIX - B100O05M3 E001-S402 Phoenix B100 | Fulling

Home   Products   >   Motor Controllers/Drives   >   Brushless DC motor Multi-Axis Controllers / Drives   >   Phoenix B100

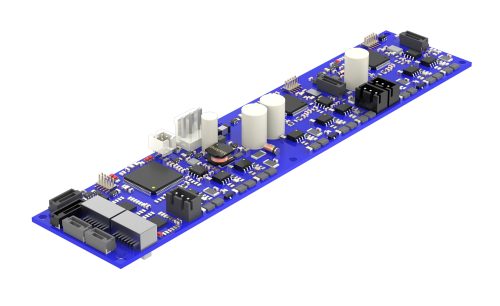

PHOENIX - B100O05M3 E001-S402

PHOENIX - B100O05M3 E001-S402

Number of Axis 3   |  Interface EtherCAT   |  Power Supply 12 - 48 VDC   |  Phase Current up to 3 (per axis) A rms  |  Peak Current 5 (for 2s. per axis) A peak

Product Code: B100O05M3 E001-S402

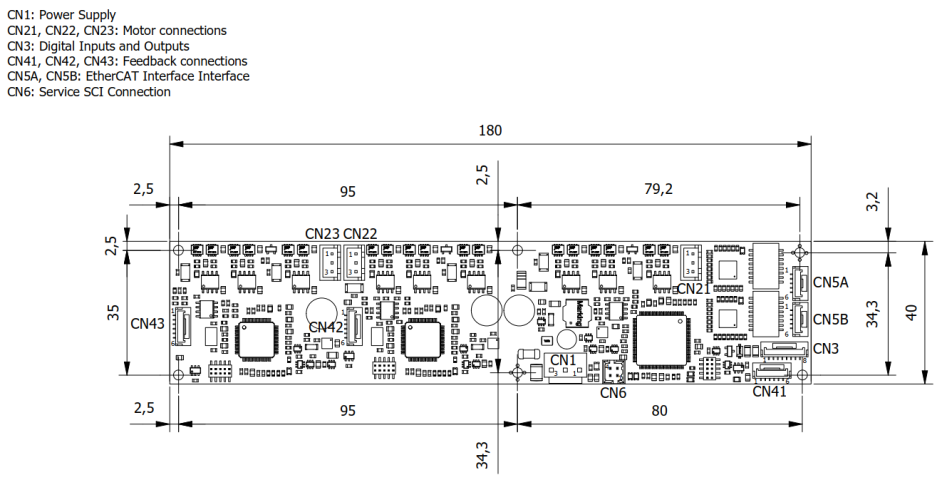

Technical Data Download Dimensions Software Accessories
Number of Axis3 InterfaceEtherCAT
Power Supply12 - 48 VDC Phase Current up to3 (per axis) A rms
Peak Current5 (for 2s. per axis) A peakMotor Power up to100 W
Logic Power Supply12 - 48VDC (optional) Chopper frequency40 kHz
Weight200 gOpen / Closed LoopClosed Loop
Operating modeProfile position/ velocity/ homing mode, Cycling sync position/ velocity/ torque mode Protective functionsOver current, Over/Under Voltage, Overheating, Short circuit
Protection ClassIP00 Pollution degree2
Operating Temperature+5 / +40°C Humidity5 - 85%
Digital Inputs3 Digital Outputs3
Encoder (standard)Incremental encoder (not isolated): 5V Differential (RS422) or 5V Single-Ended (TTL/CMOS) Hall effect sensors5V Single-Ended (TTL/CMOS)
