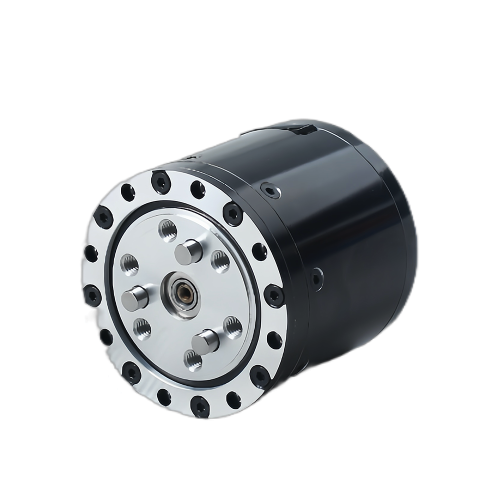

DJB 046 0017 ND1000 CS402

Size 46 mm | Rated Power 17 W | Reduction Ratio 7,75:1 | Rated Speed 100 Rpm ±10% | Max. Peak Torque 5,5 Nm

Product Code: DJB0460017NS1000CS402

Technical Data

Download

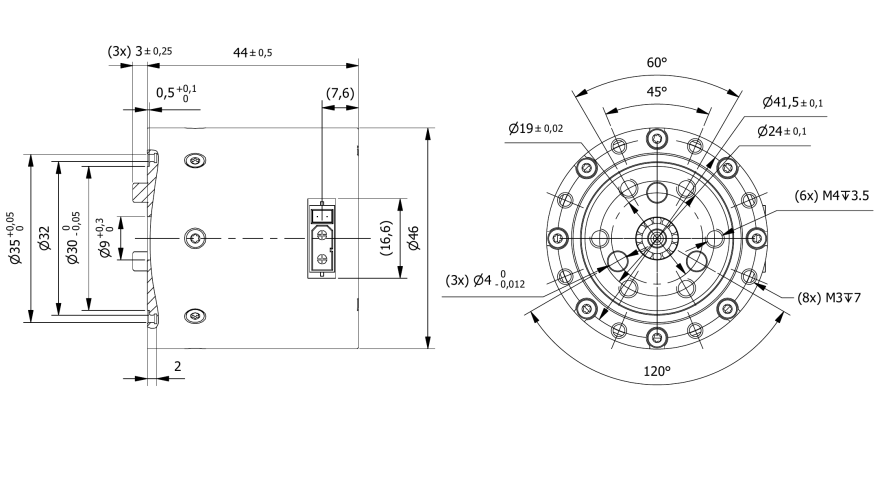

Dimensions

Software

Accessories

Size	46 mm	n° of Pole	20
Rated Voltage	48 Vdc	Operating Voltage	15-60 Vdc
Rated Power	17 W	Reduction Ratio	7,75:1
Running Direction	CW/CCW	Rated Speed	100 Rpm ±10%
Rated Torque	1,6 Nm	Max. Peak Torque	5,5 Nm
Torque Constant	0,94 Nm/A	Rated Current	2,4 A
Max. Peak Current	11 A	No-Load Current	0,14 Arms
Back EMF constant	74 V/kRPM	Encoder 14bit	2
Length (L)	45 mm	Weight	191 Kg ±5%
Encoder Type - Standard	Magnetic Incremental 14bit on the Rotor, Magnetic Absolute Single turn 14bit after the Gearbox	Insulation Class	130 °C - B
Protection class	IP52	Operating Temperature	-20°C to +50°C °C
Humidity	5-85%	Storage Range	-30 to +70 °C
Max. Radial force	117 N	Max. Axial Force	18 N
Dielectric strength (for 1s 2mA)	600 VAC	Insulation Resistance (min.500 VDC)	100 Mohm
Operating mode	Position, Speed, Torque	Protective functions	Over/Under voltage, Over current, Overheating, Short circuit
Debug & configuration	Can Converter	Interface	CANopen (DS402)
