Home > Dynamic Joint Motor - DJB 057

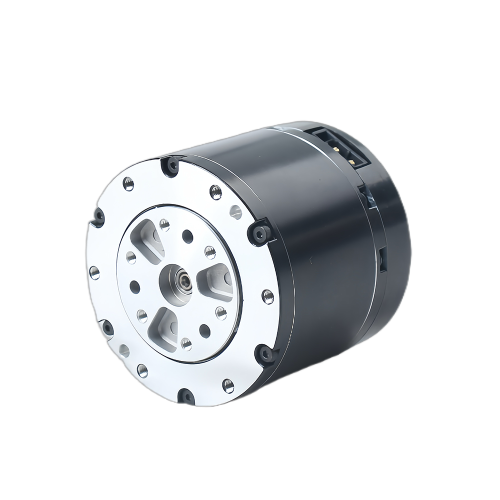

DJB 057 0140 ND1000 CS402

Size 57 mm | Rated Power 140 W | Rated Speed 260 Rpm ±10% | Max. Peak Torque 14 Nm

Product Code: DJB0570140ND1000CS402

Technical Data

Download

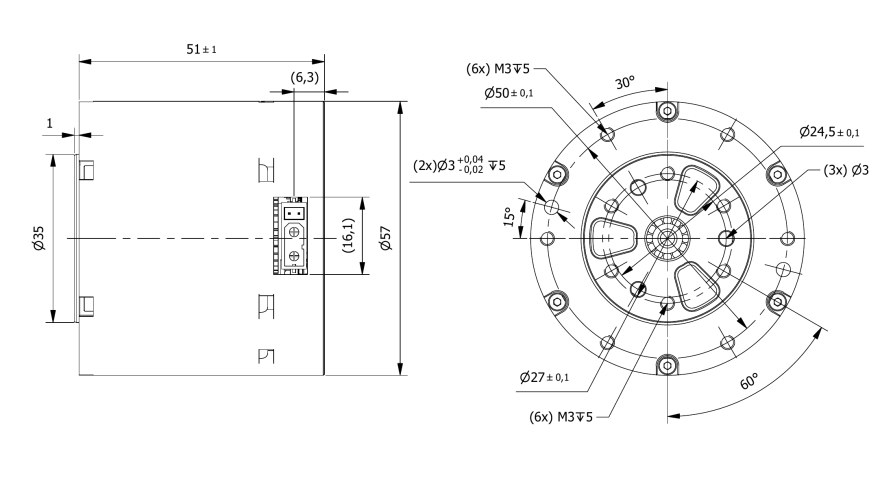

Dimensions

Software

Accessories

Size	57 mm	n° of Pole	28
Rated Voltage	48 Vdc	Operating Voltage	24-60 Vdc
Rated Power	140 W	Reduction Ratio	10:1
Running Direction	CW/CCW	Rated Speed	260 Rpm ±10%
Rated Torque	5 Nm	Max. Peak Torque	14 Nm
Torque Constant	1,48 Nm/A	Rated Current	4,7 A
Max. Peak Current	15,5 A	No-Load Current	0,5 Arms
Back EMF constant	95 V/kRPM	Encoder 14bit	2
Length (L)	51 mm	Weight	310 Kg ±5%
Encoder Type - Standard	Magnetic Incremental 14bit on the Rotor, Magnetic Absolute Single turn 14bit after the Gearbox	Insulation Class	130 °C - B
Protection class	IP52	Operating Temperature	-20°C to +50°C °C
Humidity	5-85%	Storage Range	-30 to +70 °C
Max. Radial force	185 N	Max. Axial Force	29 N
Dielectric strength (for 1s 2mA)	600 VAC	Insulation Resistance (min.500 VDC)	100 Mohm
Operating mode	Position, Speed, Torque	Protective functions	Over/Under voltage, Over current, Overheating, Short circuit
Debug & configuration	Can Converter	Interface	CANopen (DS402)
