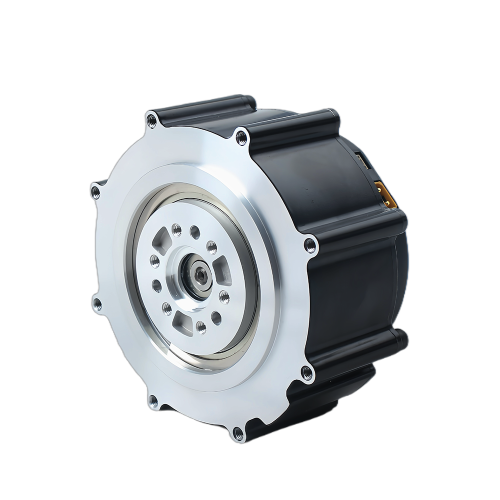

DJB 088 0115 ND1000 CS402

Size 88 mm | Rated Power 115 W | Reduction Ratio 9:1 | Rated Speed 100 Rpm ±10% | Max. Peak Torque 36 Nm

Product Code: DJB0880115ND1000CS402

Technical Data

Download

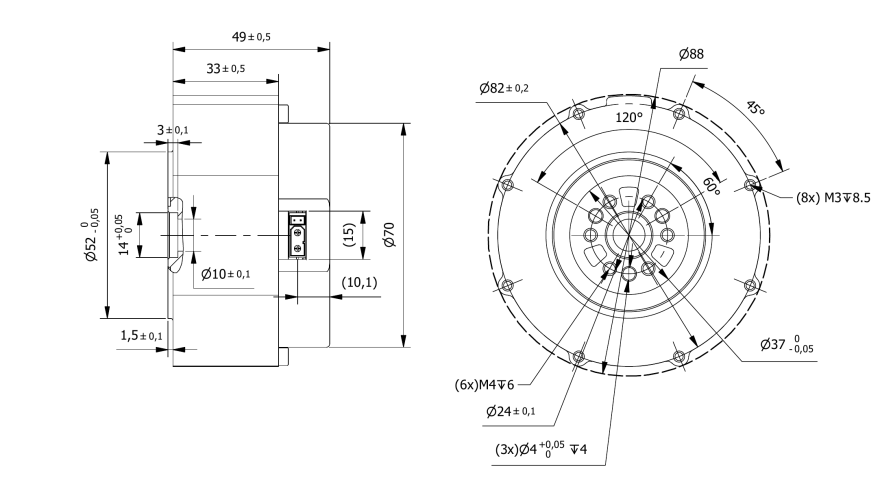

Dimensions

Software

Accessories

Size	88 mm	n° of Pole	28
Rated Voltage	48 Vdc	Operating Voltage	15-60 Vdc
Rated Power	115 W	Reduction Ratio	9:1
Running Direction	CW/CCW	Rated Speed	100 Rpm ±10%
Rated Torque	11 Nm	Max. Peak Torque	36 Nm
Torque Constant	1,1 Nm/A	Rated Current	14,3 A
Max. Peak Current	57 A	No-Load Current	0,98 Arms
Back EMF constant	76 V/kRPM	Encoder 14bit	2
Length (L)	49 mm	Weight	621 Kg ±5%
Encoder Type - Standard	Magnetic Incremental 14bit on the Rotor, Magnetic Absolute Single turn 14bit after the Gearbox	Insulation Class	130 °C - B
Protection class	IP52	Operating Temperature	-20°C to +50°C °C
Humidity	5-85%	Storage Range	-30 to +70 °C
Max. Radial force	427 N	Max. Axial Force	68 N
Dielectric strength (for 1s 2mA)	600 VAC	Insulation Resistance (min.500 VDC)	100 Mohm
Operating mode	Position, Speed, Torque	Protective functions	Over/Under voltage, Over current, Overheating, Short circuit
Debug & configuration	Can Converter	Interface	CANopen (DS402)
