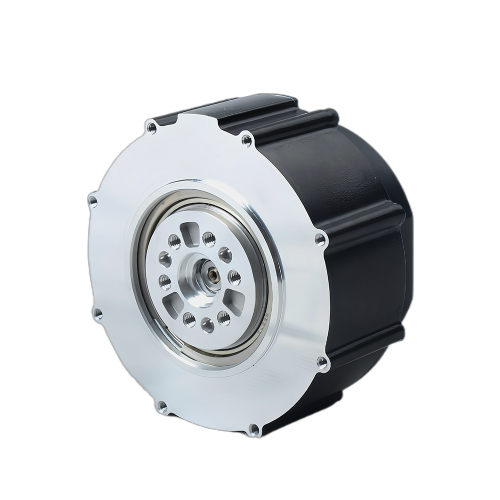

DJB 110 0380 ND1000 CS402

Size 110 mm | Rated Power 380 W | Reduction Ratio 9:1 | Rated Speed 180 Rpm ±10% | Max. Peak Torque 60 Nm

Product Code: DJB1100380ND1000S402

Technical Data

Download

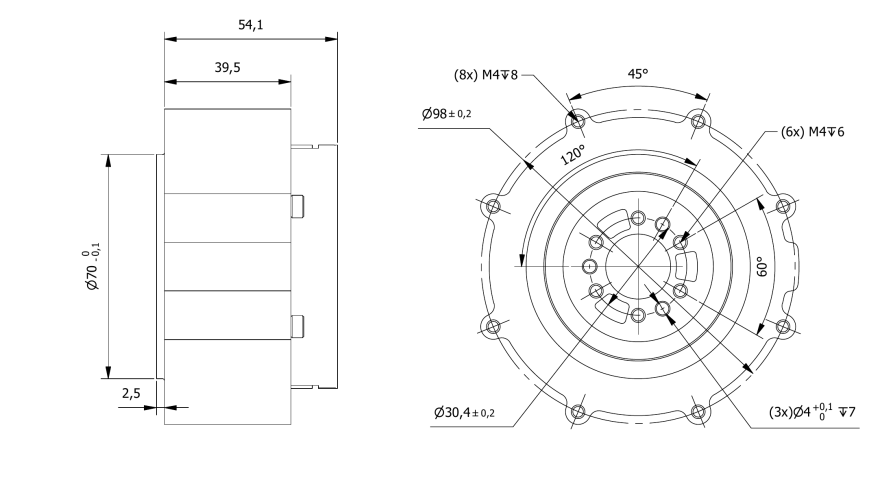

Dimensions

Software

Accessories

Size	110 mm	n° of Pole	42
Rated Voltage	48 Vdc	Operating Voltage	15-60 Vdc
Rated Power	380 W	Reduction Ratio	9:1
Running Direction	CW/CCW	Rated Speed	180 Rpm ±10%
Rated Torque	20 Nm	Max. Peak Torque	60 Nm
Torque Constant	2,36 Nm/A	Rated Current	12 A
Max. Peak Current	43 A	No-Load Current	0,6 Arms
Back EMF constant	17 V/kRPM	Resistance/Phase	0,39 Ω
Inductance/Phase	275 μH	Encoder 14bit	2
Length (L)	54 mm	Weight	900 Kg ±5%
Encoder Type - Standard	Magnetic Incremental 14bit on the Rotor, Magnetic Absolute Single turn 14bit after the Gearbox	Insulation Class	130 °C - B
Protection class	IP52	Operating Temperature	-20°C to +50°C °C
Humidity	5-85%	Storage Range	-30 to +70 °C
Max. Radial force	495 N	Max. Axial Force	79 N
Dielectric strength (for 1s 2mA)	600 VAC	Insulation Resistance (min.500 VDC)	100 Mohm
Operating mode	Position, Speed, Torque	Protective functions	Over/Under voltage, Over current, Overheating, Short circuit
Debug & configuration	Can Converter	Interface	CANopen (DS402)
