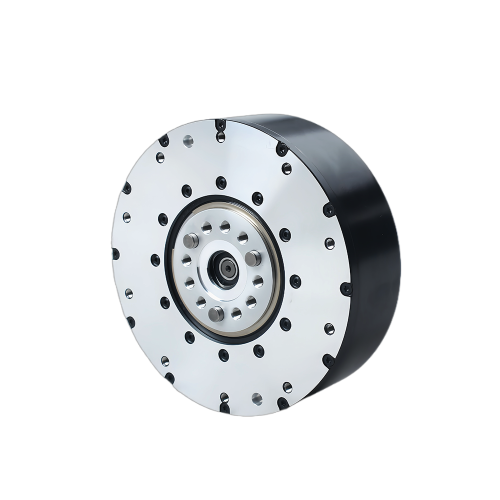

DJB 120 0700 ND1000 CS402

Size 120 mm | Rated Power 700 W | Reduction Ratio 9:1 | Rated Speed 167 Rpm ±10% | Max. Peak Torque 120 Nm

Product Code: DJB1200700ND1000CS402

Technical Data

Download

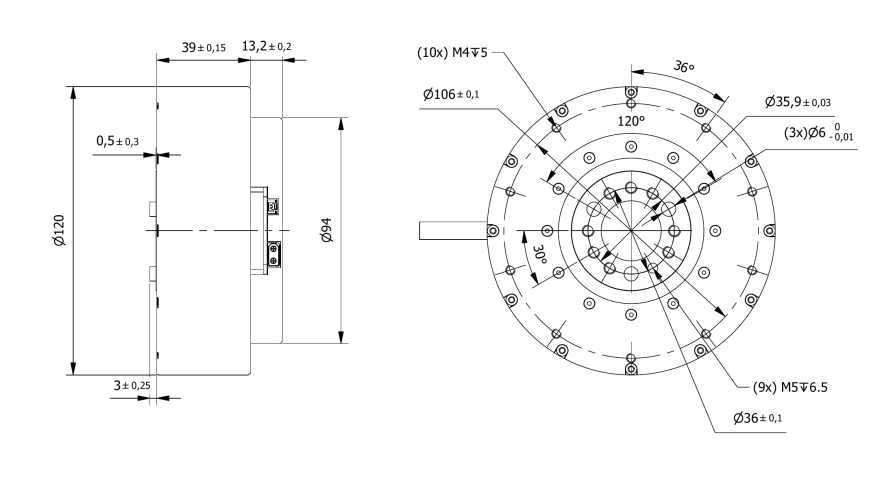

Dimensions

Software

Accessories

Size	120 mm	n° of Pole	42
Rated Voltage	48 Vdc	Operating Voltage	15-60 Vdc
Rated Power	700 W	Reduction Ratio	9:1
Running Direction	CW/CCW	Rated Speed	167 Rpm ±10%
Rated Torque	40 Nm	Max. Peak Torque	120 Nm
Torque Constant	2,1 Nm/A	Rated Current	27 A
Max. Peak Current	90 A	No-Load Current	0,7 Arms
Back EMF constant	16,9 V/kRPM	Resistance/Phase	0,16 Ω
Inductance/Phase	211 μH	Encoder 14bit	2
Length (L)	52 mm	Weight	1420 Kg ±5%
Encoder Type - Standard	Magnetic Incremental 14bit on the Rotor, Magnetic Absolute Single turn 14bit after the Gearbox	Insulation Class	130 °C - B
Protection class	IP52	Operating Temperature	-20°C to +50°C °C
Humidity	5-85%	Storage Range	-30 to +70 °C
Max. Radial force	661 N	Max. Axial Force	105 N
Dielectric strength (for 1s 2mA)	600 VAC	Insulation Resistance (min.500 VDC)	100 Mohm
Operating mode	Position, Speed, Torque	Protective functions	Over/Under voltage, Over current, Overheating, Short circuit
Debug & configuration	Can Converter	Interface	CANopen (DS402)
