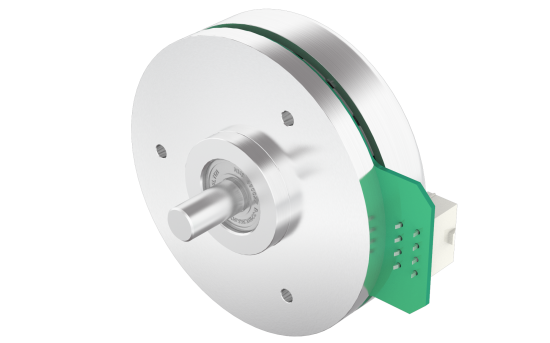

The specific external rotor design of flat brushless DC motors gives these products an exceptional power to volume ratio, while keeping them very light and compact. Thanks to a high number of poles, these flat high torque DC motors offer very good control also at low speed. Our flat BLDC motor range offers a wide variety of sizes with reduced length.


Product finder
More Filters

Product name
Size (mm)
Length (L) (mm)
Rated Voltage (Vdc)
Rated Torque (Nm)
Rated Speed (rpm)
90BLW27-24V 90 27 24 0.457 2720
90BLW27-36V 90 27 36 0.56 2540
90BLW27-48V 90 27 48 0.533 1610
90BLW27-60V 90 27 60 0.46 2200
90BLW40 90 40 48 0.964 1670
