Home Products > Motors with integrated Controller > BLDC Servo motors with Motion controller > IVI080

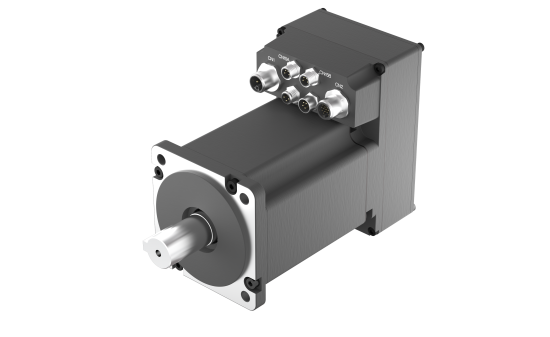

IVI080

Our Servo Motors with integrated controller are among the most compact on the market. The powerful drive built directly into the motor reduces cabling and simplifies installation and setup, enhancing overall efficiency. These high-performing motors are IP65 rated, STO (Safe Torque Off) certified, and available with an optional integrated brake. All models support a wide range of Fieldbus protocols, including CANopen, Modbus-RTU, Modbus-TCP, EtherCAT, Profinet, EtherNet/IP and Powerlink.

Products

Product finder

Technology:

Category:

More Filters

Interface:

CANopen

CANopen - programmable

EtherCAT

EtherNet/IP

Modbus-RTU

Modbus TCP

PowerLink

Profinet

Product name

Size (mm)

Length (L) (mm)

Interface

Rated Power (Watt)

Rated Voltage (Vdc)

Brake


IVI080 0750NX100X M-S200	80	165	Modbus-RTU	750	48
IVI080 0750NX100X C-S200	80	165	CANopen - programmable	750	48
IVI080 0750NX100X C-S402	80	165	CANopen	750	48
IVI080 0750NXX000 T-S200	80	165	Modbus TCP	750	48
IVI080 0750NXX000 E-S402	80	165	EtherCAT	750	48
IVI080 0750NX3000 P-S200	80	165	Profinet	750	48
IVI080 0750NX3000 R-S402	80	165	PowerLink	750	48
IVI080 0750NX3000 H-S200	80	165	EtherNet/IP	750	48
IVI080 1000NX100X M-S200	80	185	Modbus-RTU	1000	48
IVI080 1000NX100X C-S200	80	185	CANopen - programmable	1000	48
IVI080 1000NX100X C-S402	80	185	CANopen	1000	48
IVI080 1000NXX000 T-S200	80	185	Modbus TCP	1000	48
IVI080 1000NXX000 E-S402	80	185	EtherCAT	1000	48
IVI080 1000NX3000 P-S200	80	185	Profinet	1000	48
IVI080 1000NX3000 R-S402	80	185	PowerLink	1000	48
IVI080 1000NX3000 H-S200	80	185	EtherNet/IP	1000	48
