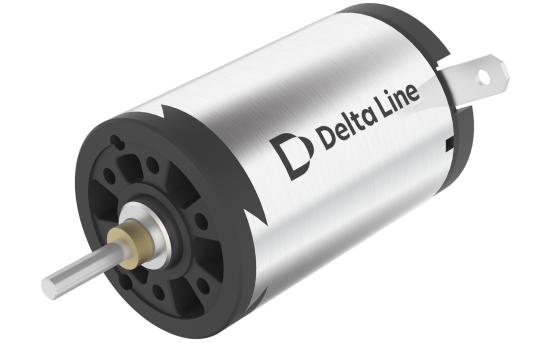

16DC -P


16DC -P

Developed with a highly efficient ironless motor winding technology, these range offers compact, light and powerful drives with low inertia. Our brushed coreless DC motors deliver superior torque density and very high acceleration performances. Ranging from micro coreless 8mm diameter motors to larger 35mm solutions, these motors can be assembled with precious metal or graphite brushes.



16DC -P
.

Products
Product finder
Technology:
Category:
More Filters

Product name
Commutation
Size (mm)
Length (L) (mm)
Rated Voltage (Vdc)
Rated Torque (mNm)
Rated Speed (rpm)
16DC25P-6V-PM Precious Metal Brushes 16 25.4 6 4.06 4830
16DC25P-6V-G Graphite Brushes 16 25.4 6 3.71 6770
16DC25P-12V-PM Precious Metal Brushes 16 25.4 12 3.92 4390
16DC25P-12V-G Graphite Brushes 16 25.4 12 4.31 6200
16DC25P-24V-PM Precious Metal Brushes 16 25.4 24 3.8 4210
16DC25P-24V-G Graphite Brushes 16 25.4 24 4.76 6580
